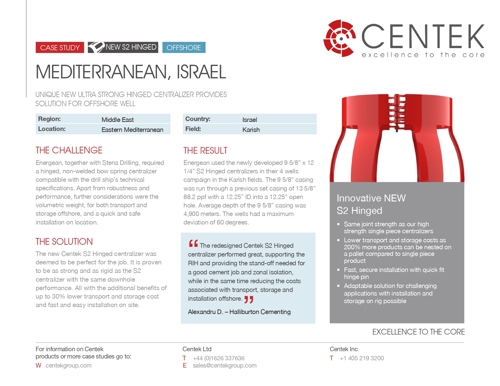

THE CHALLENGE
Energean, together with Stena Drilling, required a hinged, non-welded bow spring centralizer compatible with the drill ship’s technical specifications. Apart from robustness and performance, further considerations were the volumetric weight, for both transport and storage offshore, and a quick and safe installation on location.
THE SOLUTION

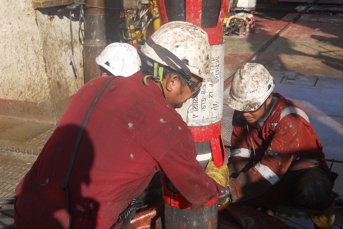

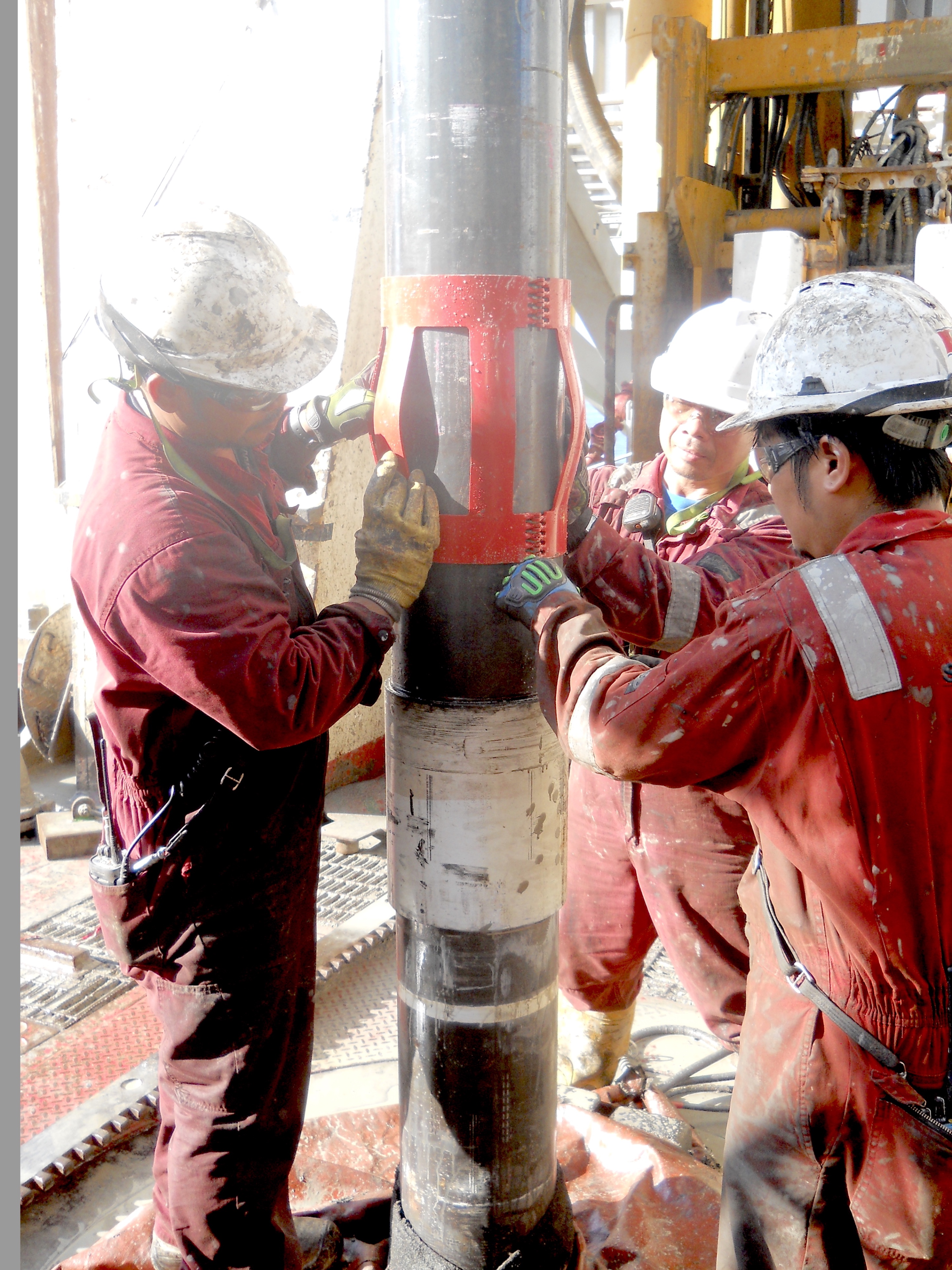

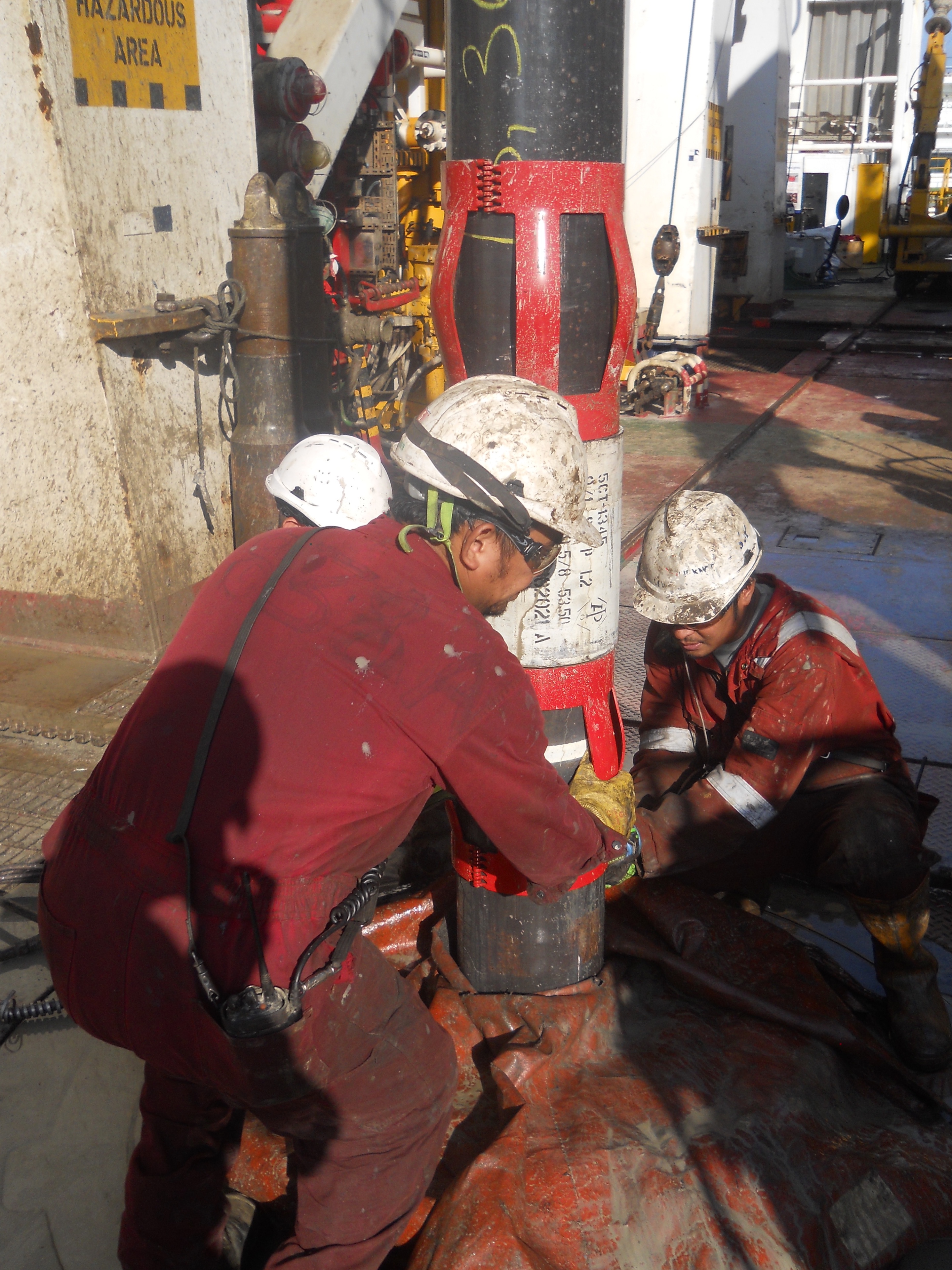

The new Centek S2 Hinged centralizer was deemed to be perfect for the job. It is proven to be as strong and as flexible as the S2 centralizer with the same downhole performance. All with the additional benefits of up to 30% lower transport and storage cost and fast and easy installation on site.
THE RESULT

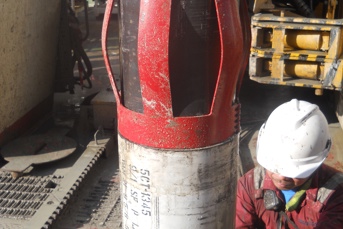

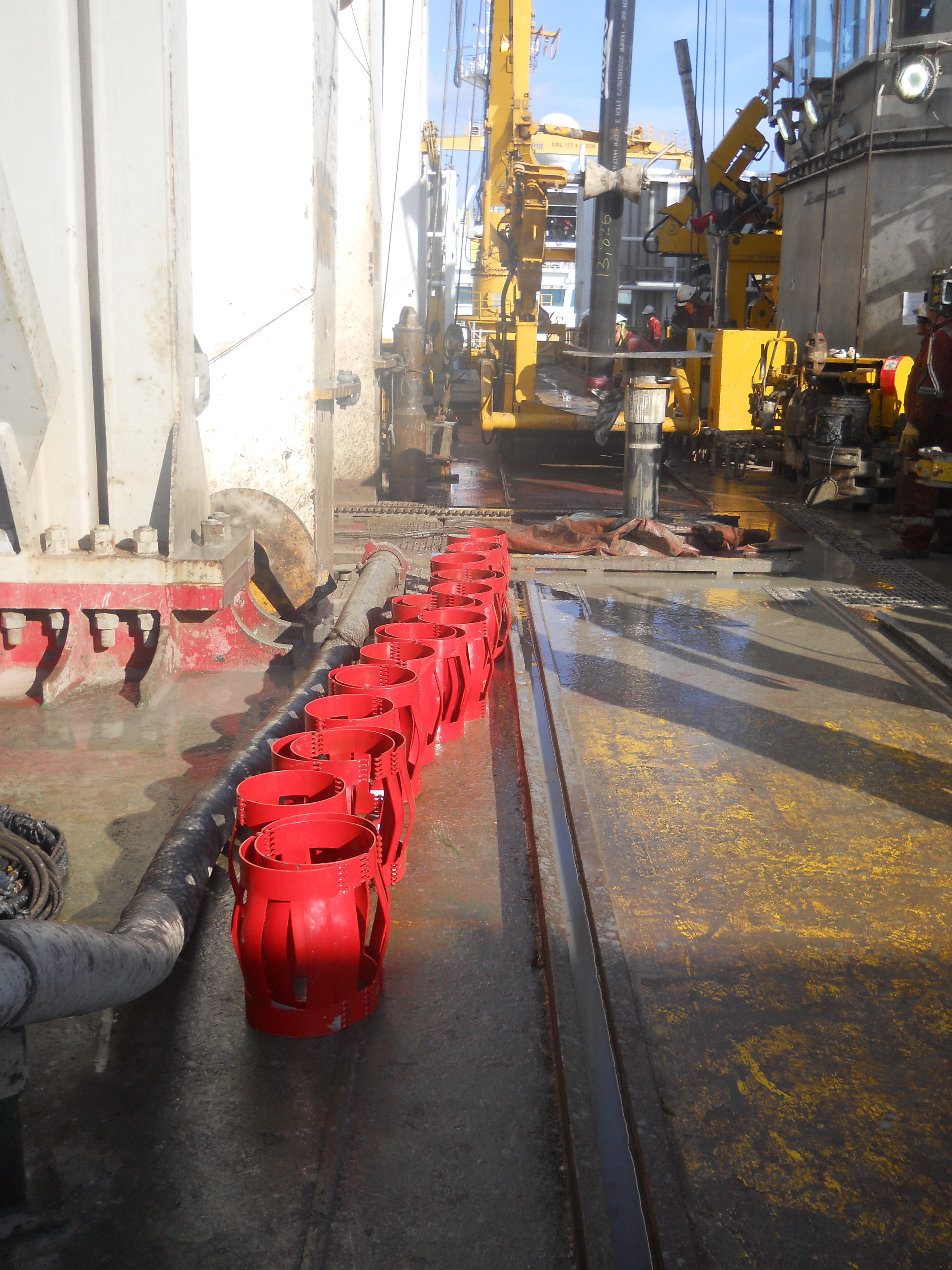

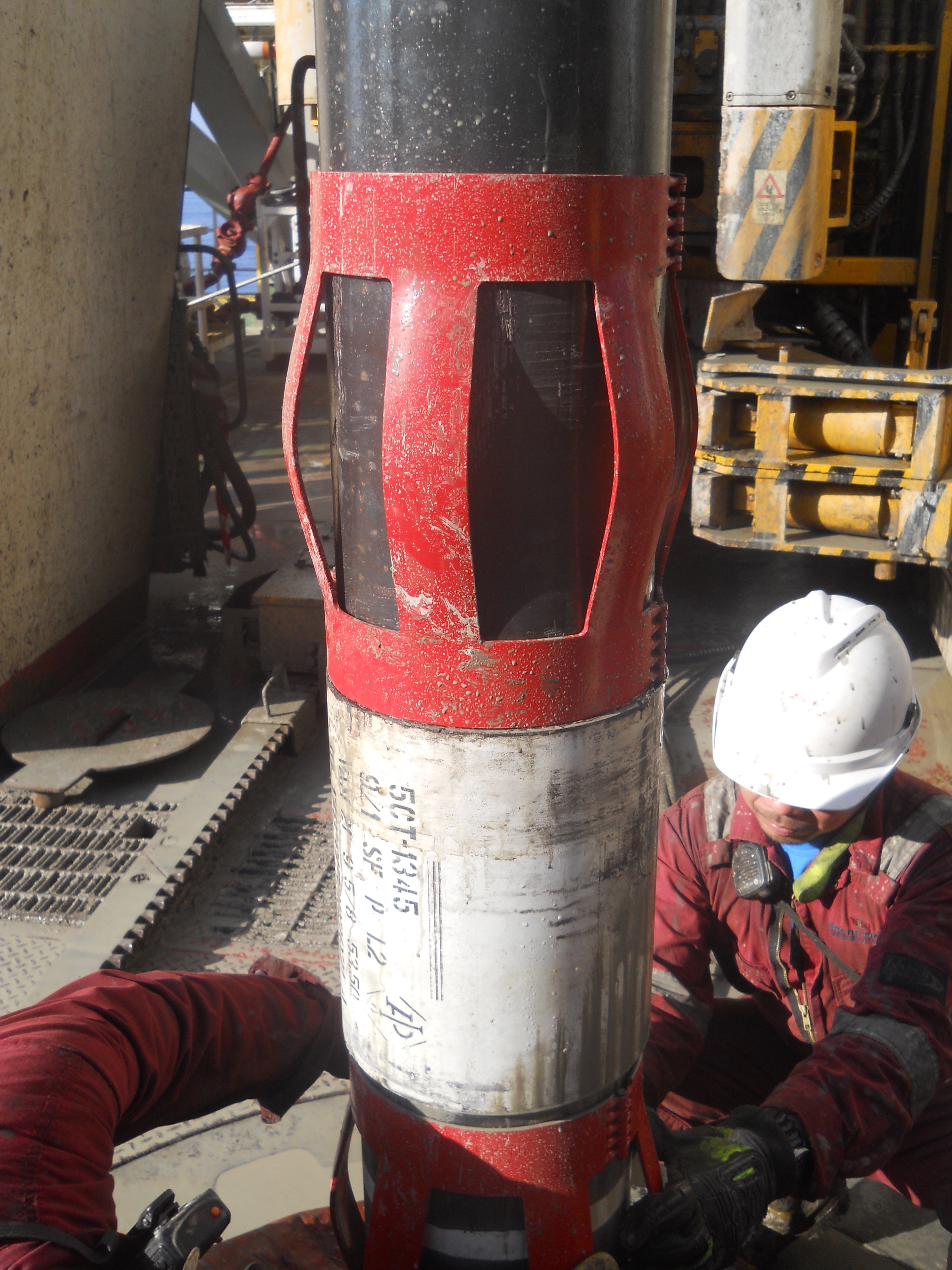

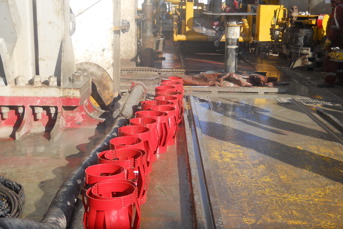

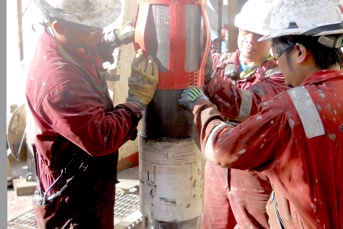

Energean used the newly developed 9 5/8” x 12 1/4” S2 Hinged centralizers in their 4 wells campaign in the Karish fields. The 9 5/8” casing was run through a previous set casing of 13 5/8” 88.2 ppf with a 12.25” ID into a 12.25” open hole. Average depth of the 9 5/8” casing was 4,900 meters. The wells had a maximum deviation of 60 degrees.
